S、SH单级双吸中开式离心泵
发布时间:2018/5/2 14:08:49
点击量:3
一、产品概述

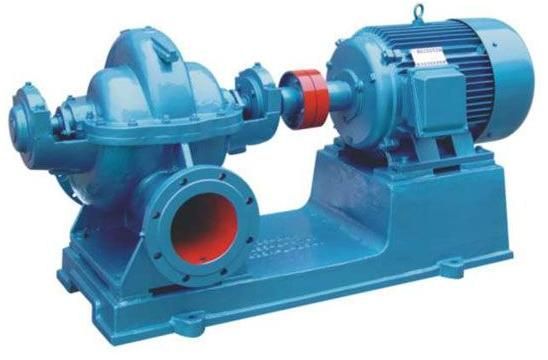

S型单级双吸水平中开式离心泵。该型泵吸入口和排出口均在泵轴心线下方,检修时,只要将泵盖揭开,即可将全部零件拆下进行维修。S型泵主要由泵体、泵盖、轴、叶轮、密封环、轴套、轴承部件等组成。其性能符合JB/1050-93《单吸双吸清水离心泵型式与基本参数》标准。
主要用于输送不含固体颗粒的清水或物理化学性质类似水的其它液体。适用于工业和城市给排水、农田排灌。
二、产品特点
1、密封系统:可供选用的机械密封、填料密封其冷却润滑均采用内循环;
2、流量大、效率高:双吸叶轮,具有流量大、效率高等特点;
3、可更换的轴套:轴套作为易损件,起到保护轴,提高泵的使用寿命;
4、密封环:密封环作为易损件,起到提高泵的效率、延长泵的使用寿命的特点。
三、产品用途
主要适用于工厂、矿山、城市给水、电站、农田排灌和各种水利工程。
四、工作条件
流量范围:50~4000 m 3 /h
扬程范围H:8~150m
介质温度:-20℃~+80℃
环境温度:≤+40℃
型号 | 流量Q ( m 3 /h) | 扬程H (m) | 转速n (r/min) | 功率(KW) | 效率η (%) | 汽蚀余量(NPSH)r(m) | |
轴功率 | 电机功率 | ||||||
100S90 | 80 | 90 | 2950 | 30.1 | 37 | 65 | 2.5 |
100S90A | 72 | 75 | 23 | 30 | 64 | 2.5 | |
150S100 | 160 | 100 | 59.8 | 75 | 73 | 3.5 | |
150S78 | 160 | 78 | 45 | 55 | 73.5 | 3.5 | |
150S78A | 144 | 62 | 33.8 | 45 | 72 | 3.5 | |
150S50 | 160 | 50 | 27.3 | 37 | 80 | 3.9 | |
150S50A | 144 | 40 | 20.9 | 30 | 75 | 3.9 | |
150S50B | 133 | 36 | 18.6 | 22 | 70 | 3.9 | |
200S95 | 280 | 95 | 91.7 | 110 | 79.2 | 5.3 | |
200S95A | 270 | 75 | 73.5 | 90 | 75 | 5.3 | |
200S63 | 280 | 63 | 58.3 | 75 | 82.7 | 5.8 | |
200S63A | 270 | 46 | 45.1 | 55 | 75 | 5.8 | |
200S42 | 280 | 42 | 38.1 | 45 | 84.2 | 6 | |
200S42A | 270 | 36 | 33.1 | 37 | 80 | 6 | |
250S65 | 485 | 65 | 1450 | 109 | 132 | 78.6 | 3 |
250S65A | 468 | 54 | 89.4 | 110 | 77 | 3 | |
250S39 | 485 | 39 | 61.5 | 75 | 83.6 | 3.2 | |
250S39A | 468 | 30.5 | 49.3 | 55 | 79 | 3.2 | |
250S24 | 485 | 24 | 36.9 | 45 | 85.8 | 3.5 | |
250S24A | 414 | 20.3 | 27.6 | 37 | 83 | 3.5 | |
250S14 | 485 | 14 | 21.5 | 30 | 85.8 | 3.8 | |
250S14A | 432 | 11 | 15.8 | 18.5 | 82 | 3.8 | |
300S110 | 790 | 110 | 295.7 | 440 | 80 | 4 | |
300S90 | 790 | 90 | 242.8 | 315 | 79.6 | 4 | |
300S90A | 756 | 78 | 217 | 280 | 74 | 4 | |
300S90B | 720 | 67 | 180 | 220 | 73 | 4 | |
300S58 | 790 | 58 | 149.9 | 180 | 84.2 | 4.4 | |
300S58A | 720 | 49 | 118.6 | 160 | 81 | 4.4 | |
300S58B | 684 | 43 | 100 | 132 | 80 | 4.4 | |
300S32 | 790 | 32 | 79.2 | 110 | 86.8 | 4.6 | |
300S32A | 720 | 26 | 60.7 | 75 | 84 | 4.6 | |
300S19 | 790 | 19 | 47 | 55 | 86.8 | 5.2 | |
300S19A | 720 | 16 | 39.2 | 45 | 80 | 5.2 | |
300S12 | 790 | 12 | 30.4 | 37 | 84.8 | 5.5 | |
300S12A | 684 | 10 | 3.9 | 30 | 78 | 5.5 | |
350S125 | 1260 | 125 | 534 | 710 | 80.5 | 5.4 | |
350S125A | 1181 | 112 | 462 | 630 | 78 | 5.4 | |
350S125B | 1098 | 96 | 373 | 500 | 77 | 5.4 | |
350S75 | 1260 | 75 | 303 | 355 | 85.2 | 5.8 | |
350S75A | 1170 | 65 | 247 | 280 | 84 | 5.8 | |
350S75B | 1080 | 55 | 197 | 220 | 82 | 5.8 | |
350S44 | 1260 | 44 | 173 | 220 | 87.5 | 6.3 | |
350S44A | 1116 | 36 | 131 | 160 | 84 | 6.3 | |
350S26 | 1260 | 26 | 102 | 132 | 87.5 | 6.7 | |
350S26A | 1116 | 21.5 | 78.8 | 90 | 83 | 6.7 | |
350S16 | 1260 | 16 | 64.5 | 75 | 85.3 | 7.1 | |
350S16A | 1044 | 13.4 | 48.8 | 55 | 48 | 7.1 | |
500S98 | 2020 | 95 | 970 | 678 | 800 | 79.5 | 4 |
500S98A | 1872 | 83 | 540 | 630 | 78.5 | 4 | |
500S98B | 1746 | 74 | 452 | 560 | 78 | 4 | |
500S59 | 2020 | 59 | 391 | 450 | 83 | 4.5 | |
500S59A | 1872 | 49 | 333 | 400 | 75 | 4.5 | |
500S59B | 1746 | 40 | 257 | 315 | 74 | 4.5 | |
500S35 | 2020 | 35 | 219 | 280 | 88 | 4.8 | |
500S35A | 1746 | 27 | 151 | 220 | 85 | 4.8 | |
500S22 | 2020 | 22 | 144.1 | 185 | 84 | 5.2 | |
500S22A | 1746 | 17 | 101 | 132 | 80 | 5.2 | |
500S13 | 2020 | 13 | 86.2 | 110 | 83 | 5.7 | |
600S75 | 3170 | 75 | 727 | 800 | 89 | 7.5 | |
600S75A | 2880 | 65 | 580 | 630 | 88 | 7.5 | |
600S47 | 3170 | 47 | 465 | 560 | 88 | 7.5 | |
600S32 | 3170 | 32 | 310 | 400 | 89 | 7.5 | |
600S32A | 2880 | 27 | 238 | 280 | 89 | 7.5 | |
600S22 | 3170 | 22 | 223 | 280 | 85 | 7.5 | |
600S22A | 2880 | 18.2 | 168.5 | 200 | 84.5 | 7.5 |
